Trailer Stockcrates & Hungry Sides

Trailer Stockcrates

There are three styles of stockcrates
available.

Option one: Is 1535mm high from deck of trailer and is manufactured from 75 x 75 x 4 mesh welded to 25 x 25
box section frame, hot dip galvanized with 1.6mm galvanized panel front.

Option
two: Is 1535mm high from deck of trailer and is manufactured from 25 x 25 box section frame, hot dip galvanized with
1.6mm galvanized panel front and 12mm Transtex sides and rear. The crates are
in four parts and have a sliding back door.

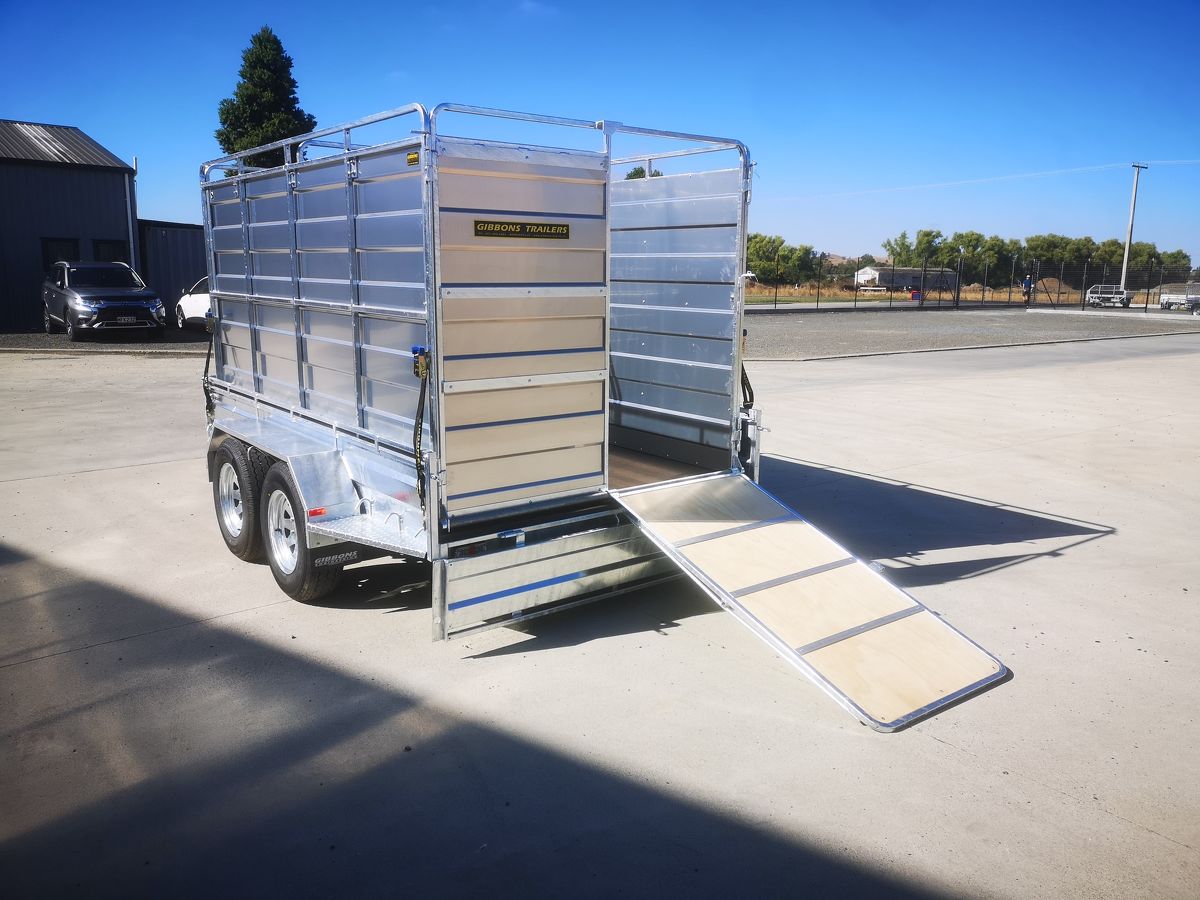

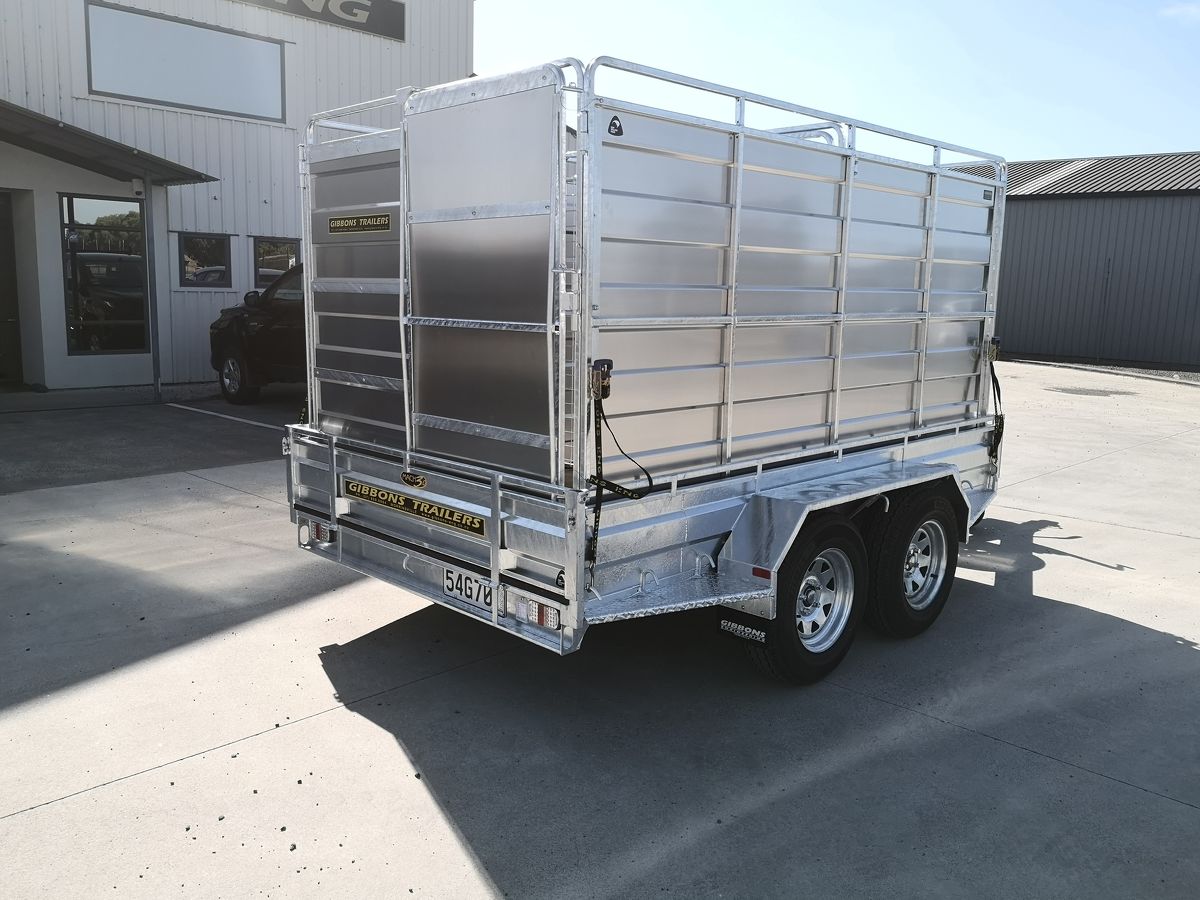

Option three: Is 1600mm high from the deck of the trailer, and is manufactured from 25 x 25 box section frame, hot dip galvanized fitted with 3mm pressed aluminum sheets on all sides.

The crates are made in four sections, have a sliding back door, and are anchord to the trailer with gibbons tie downs.

Extras:
-Mesh center door
-Sliding back door/ramp

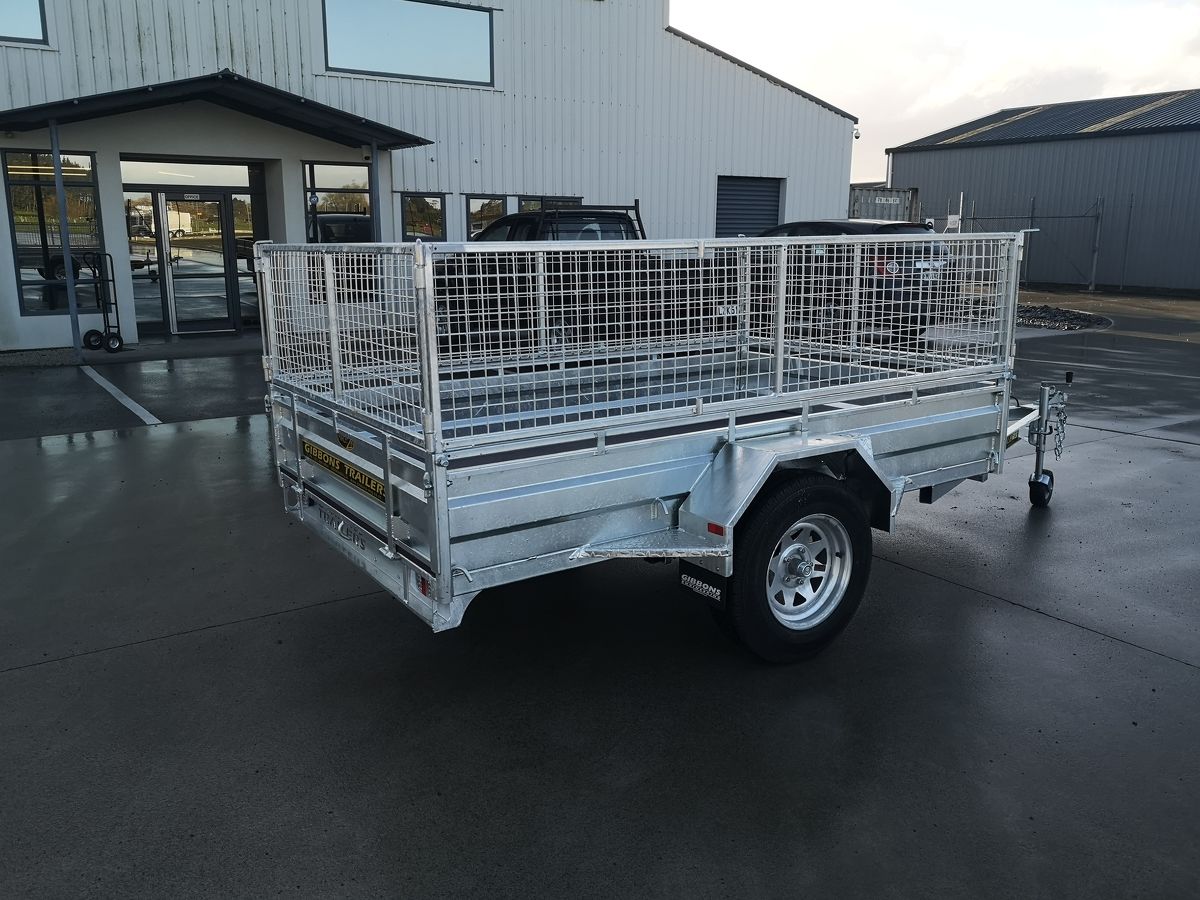

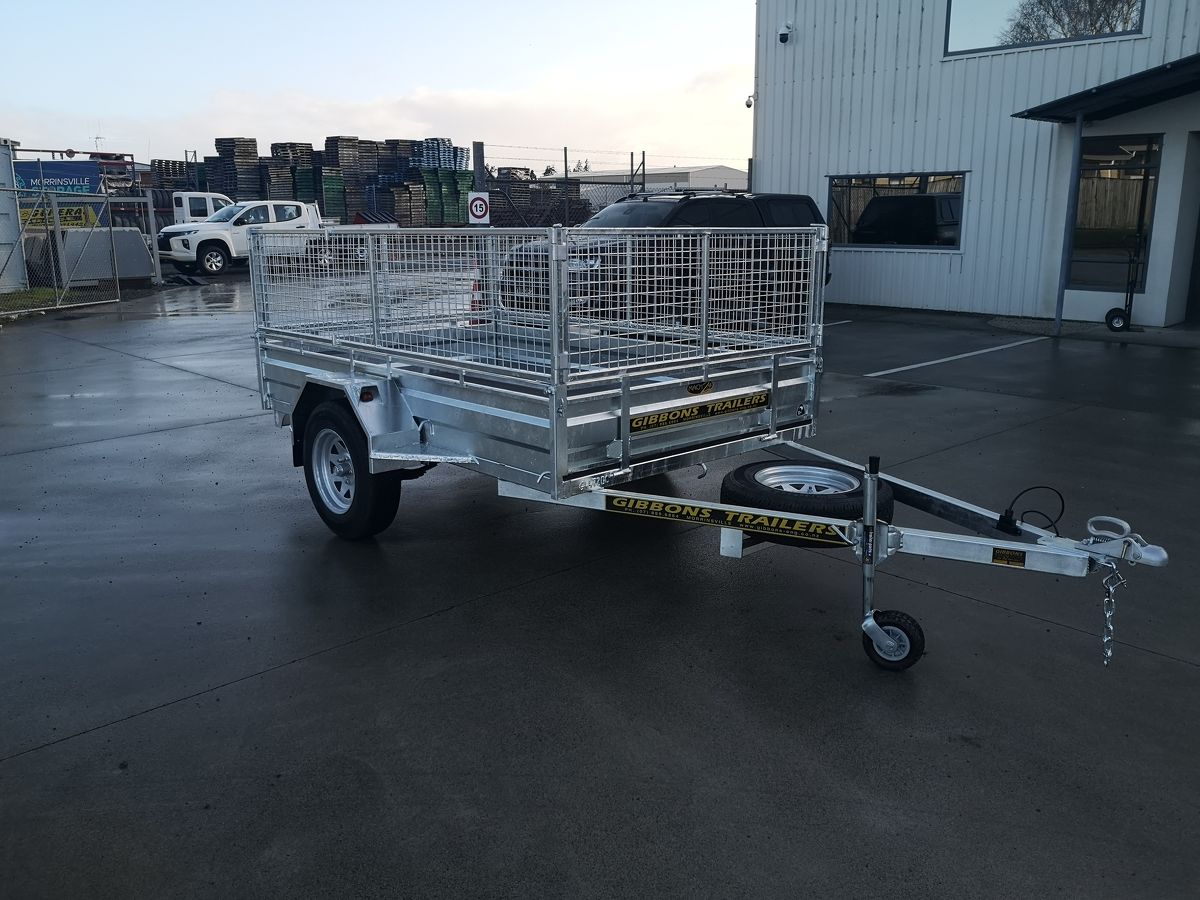

Hungry sides sit on top of the combing rail of the trailer. And are made in four sections from the top of the trailer. They can be made in three different heights - 540mm, 900mm or 1200mm high. We can manufacture two different types of hungry sides.
Option one: Is 75 x 75 x 4 mesh welded to 25 x 25 box section frame hot dip galvanized.
Option two: Is 25 x 25 box section frame hot dip galvanized with 1.6mm galvanized panel steel sides.
